Part # : HDM 7084-D153
D Number : D153
Disc Pad Size : Inner: 6.14" W x 1.93" H x .465" Thick, Outer: 6.14" W x 1.93" H x .400" Thick
Remarks :

Part # : HDM 7576-D702
D Number : D702
Disc Pad Size : Inner: 6.03" W x 1.70" H x .650" Thick, Outer: 6.03" W x 1.70" H x .650" Thick
Remarks :

Part # : HDM 7603-D734
D Number : D734
Disc Pad Size : Inner: 4.41" W x 2.29" H x .756" Thick, Outer: 4.41" W x 2.29" H x .756" Thick
Remarks :

Part # : HDM 7653-D785
D Number : D785
Disc Pad Size : Inner: 6.74" W x 1.70" H x .724" Thick, Outer: 6.74" W x 1.70" H x .724" Thick
Remarks : 51mm 2 Piston Caliper

Part # : HDM 7848-D949E
D Number : D949
Disc Pad Size : Inner: 6.35" W x 1.48" H x .750" Thick, Outer: 6.35" W x 1.48" H x .750" Thick
Remarks :

Part # : SD 7500-D433
D Number : D433
Disc Pad Size : Inner: 4.24" W x 1.89" H x .677" Thick, Outer: 4.24" W x 1.89" H x .677" Thick
Remarks :

Part # : SD 8382-D1265S
D Number : D1265
Disc Pad Size : Inner: 5.01" W x 1.97" H x .765" Thick, Outer: 5.01" W x 1.97" H x .765" Thick
Remarks : 8 piece set - 2 inners & 6 outers

Part # : HDM 7698-D826
D Number : D826
Disc Pad Size : Inner: 7.18" W x 1.94" H x .783" Thick, Outer: 7.18" W x 1.94" H x .783" Thick
Remarks :

Part # : HDM 7699-D827
D Number : D827
Disc Pad Size : Inner: 7.37" W x 2.88" H x .780" Thick, Outer: 7.37" W x 2.88" H x .780" Thick
Remarks : 14,001-16,000 GVW

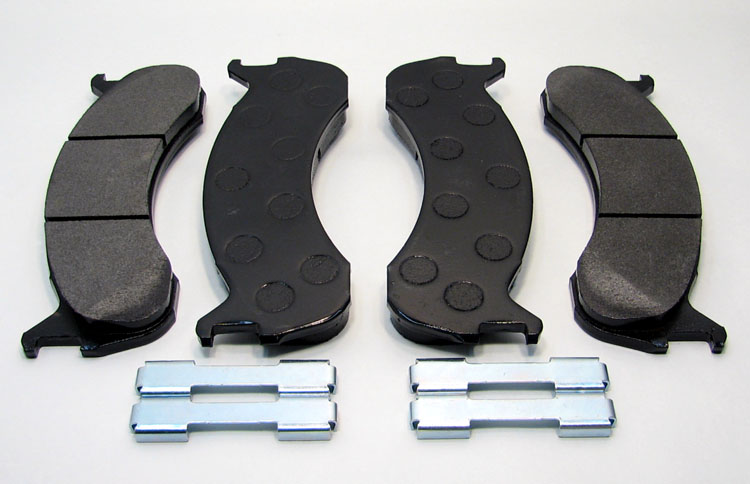

Part # : HDM 7654-D786
D Number : D786A
Disc Pad Size : Inner: 8.86" W x 2.36" H x .800" Thick, Outer: 8.86" W x 2.36" H x .800" Thick
Remarks : Thin Version: Bosch 66mm Caliper # 4153269

Part # : HDM 7972-D1066
D Number : D1066
Disc Pad Size : Inner: 7.35" W x 2.21" H x .798" Thick, Outer: 7.35" W x 2.21" H x .798" Thick
Remarks : 60mm 4 Piston Caliper

Part # : M 8430-D1316S
D Number : D1316
Disc Pad Size : Inner: 5.53" W x 1.83" H x .792" Thick, Outer: 5.53" W x 1.83" H x .792" Thick
Remarks : 48mm Piston

Part # : M 8431-D1317S
D Number : D1317
Disc Pad Size : Inner: 4.52" W x 1.40" H x .750" Thick, Outer: 4.52" W x 1.40" H x .750" Thick
Remarks : 51mm Piston

Part # : M 8432-D1318S
D Number : D1318
Disc Pad Size : Inner: 5.68" W x 1.63" H x .787" Thick, Outer: 5.68" W x 1.63" H x .787" Thick
Remarks : 48mm Piston

Part # : SD 7425-D546
D Number : D546
Disc Pad Size : Inner: 6.80" W x 1.87" H x .866" Thick, Outer: 7.28" W x 1.88" H x .866" Thick
Remarks :

Part # : SD 7425-D546
D Number : D675
Disc Pad Size : Inner: 6.80" W x 1.87" H x .866" Thick, Outer: 7.28" W x 1.88" H x .866" Thick
Remarks :

Part # : SD 7499-D624
D Number : D624
Disc Pad Size : Inner: 5.80" W x 2.08" H x .650" Thick, Outer: 5.80" W x 2.08" H x .650" Thick
Remarks :

Part # : SD 7575-D701
D Number : D701
Disc Pad Size : Inner: 6.32" W x 2.18" H x .782" Thick, Outer: 6.32" W x 2.18" H x .782" Thick
Remarks :

Part # : SD 7814-D379
D Number : D327
Disc Pad Size : Inner: 8.03" W x 2.54" H x .945" Thick, Outer: 8.03" W x 2.54" H x .945" Thick
Remarks :

Part # : SD 7814-D379
D Number : D379
Disc Pad Size : Inner: 8.03" W x 2.54" H x .945" Thick, Outer: 8.03" W x 2.54" H x .945" Thick
Remarks :

Part # : SD 7829-D928S
D Number : D928
Disc Pad Size : Inner: 4.48" W x 1.49" H x .700" Thick, Outer: 4.48" W x 1.49" H x .700" Thick
Remarks : Bosch Caliper

Part # : SD 7849-D950S
D Number : D950
Disc Pad Size : Inner: 4.75" W x 1.50" H x .762" Thick, Outer: 4.75" W x 1.50" H x .762" Thick
Remarks :

Part # : SD 7931-D1027
D Number : D1027
Disc Pad Size : Inner: 6.76" W x 2.73" H x .875" Thick, Outer: 6.76" W x 2.73" H x .875" Thick
Remarks : Brembo 68mm 2 Piston Caliper

Part # : SD 7914-D1010S
D Number : D1010
Disc Pad Size : Inner: 8.66" W x 2.38" H x .790" Thick, Outer: 8.66" W x 2.38" H x .790" Thick
Remarks : 60mm or 66mm 2 Piston Caliper

Part # : SD 7969-D1064S
D Number : D1064
Disc Pad Size : Inner: 8.66" W x 2.23" H x .790" Thick, Outer: 8.66" W x 2.23" H x .790" Thick
Remarks : 2 Piston Caliper w/ Drum-in-the-hat rear rotor

Part # : HDM 7081-D149
D Number : D149
Disc Pad Size : Inner: 6.00" W x 1.80" H x .791" Thick, Outer: 8.00" W x 1.80" H x .622" Thick
Remarks :

Part # : HDM 7081-D149
D Number : D543
Disc Pad Size : Inner: 6.00" W x 1.80" H x .791" Thick, Outer: 8.00" W x 1.80" H x .622" Thick
Remarks :

Part # : HDM 7108-D184
D Number : D184
Disc Pad Size : Inner: 6.82" W x 2.44" H x .860" Thick, Outer: 10.00" W x 2.42" H x .460" Thick
Remarks : Bendix 1 Piston Caliper

Part # : HDM 7108-D184
D Number : D717
Disc Pad Size : Inner: 6.82" W x 2.44" H x .862" Thick , Outer: 10.00" W x 2.43" H x .653" Thick
Remarks : Bendix 1 Piston Caliper

Part # : HDM 7141-D224
D Number : D224
Disc Pad Size : Inner: 8.32" W x 2.24" H x .750" Thick, Outer: 8.32" W x 2.24" H x .750" Thick
Remarks : Dayton 2.50" 2 Piston Caliper

Part # : HDM 7142-D225
D Number : D225
Disc Pad Size : Inner: 6.82" W x 2.44" H x 1.145" Thick, Outer: 10.47" W x 2.43" H x .795" Thick
Remarks : Bendix 2.88" 2 Piston Caliper

Part # : HDM 7149-D236
D Number : D236
Disc Pad Size : Inner: 8.32" W x 2.24" H x .750" Thick, Outer: 8.32" W x 2.24" H x .750" Thick
Remarks : 2.88" 2 Piston Caliper

Part # : HDM 7299-D411
D Number : D411
Disc Pad Size : Inner: 7.32" W x 2.26" H x .815" Thick, Outer: 7.32" W x 2.26" H x .815" Thick
Remarks :

Part # : HDM 7339-D459
D Number : D459
Disc Pad Size : Inner: 4.80" W x 1.89" H x .770" Thick, Outer: 5.67" W x 1.77" H x .650" Thick
Remarks :

Part # : HDM 7436-D557
D Number : D557
Disc Pad Size : Inner: 7.42" W x 1.77" H x .776" Thick, Outer: 7.42" W x 1.77" H x .776" Thick
Remarks :

Part # : HDM 7535-D655
D Number : D655
Disc Pad Size : Inner: 7.32" W x 1.79" H x .736" Thick, Outer: 7.32" W x 1.79" H x .736" Thick
Remarks : Friction extends above steel on upper radius

Part # : HDM 7604-D735
D Number : D735
Disc Pad Size : Inner: 4.07" W x 1.89" H x .685" Thick, Outer: 4.26" W x 1.89" H x .685" Thick
Remarks : 8 piece set - 2 inners & 6 outers

Part # : HDM 7636-D769
D Number : D769
Disc Pad Size : Inner: 8.31" W x 2.51" H x .991" Thick, Outer: 8.31" W x 2.51" H x .991" Thick
Remarks : Dayton 64mm or 70mm 4 Piston Caliper

Part # : HDM 7644-D777
D Number : D777
Disc Pad Size : Inner: 7.35" W x 2.17" H x .815" Thick, Outer: 7.35" W x 2.17" H x .815" Thick
Remarks :

Part # : HDM 7652-D784
D Number : D784
Disc Pad Size : Inner: 8.27" W x 1.82" H x .717" Thick, Outer: 8.27" W x 1.82" H x .717" Thick
Remarks : 57mm 2 Piston Caliper

Part # : SD 8383-D1268S
D Number : D1268
Disc Pad Size : Inner: 5.76" W x 1.85" H x .791" Thick, Outer: 5.76" W x 1.85" H x .791" Thick
Remarks : Brembo 52mm 2 Piston Caliper

Part # : HDM 7815-D380
D Number : D380
Disc Pad Size : Inner: 6.82" W x 2.44" H x .862" Thick, Outer: 10.00" W x 2.43" H x .653" Thick
Remarks : Bendix 1 Piston Caliper

Part # : HDM 7655-D786
D Number : D786
Disc Pad Size : Inner: 8.86" W x 2.36" H x 1.055" Thick, Outer: 8.86" W x 2.36" H x 1.055" Thick
Remarks : Thick Version: Bosch 73mm Caliper # 4153222

Part # : HDM 7697-D825
D Number : D825
Disc Pad Size : Inner: 7.18" W x 1.94" H x .783" Thick, Outer: 7.18" W x 1.94" H x .783" Thick
Remarks : 10-14,000 GVW

Part # : HDM 7891-D989S
D Number : D989
Disc Pad Size : Inner: 7.35" W x 1.76" H x .760" Thick, Outer: 7.35" W x 1.76" H x .760" Thick
Remarks : 1 Ton Rear pads

Part # : HDM 7909-D1006E
D Number : D1006
Disc Pad Size : Inner: 4.73" W x 1.45" H x .703" Thick, Outer: 4.73" W x 1.45" H x .703" Thick
Remarks : ATE Caliper

Part # : M 7968-D1062S
D Number : D1062
Disc Pad Size : Inner: 6.77" W x 2.69" H x .845" Thick, Outer: 6.77" W x 2.69" H x .845" Thick
Remarks : 2 Piston Caliper
