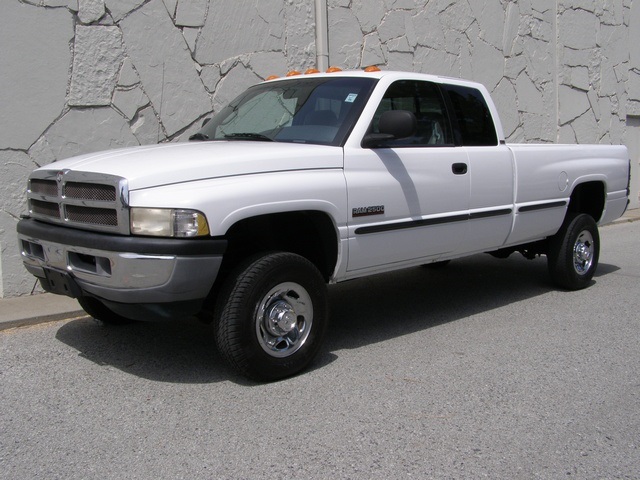

In 1994, Dodge introduced the new Ram with a 5.9L Cummins Turbo Diesel. The manual transmission options on this truck were as follows:
NOTE: We've got a detailed breakdown of clutch kit options. This is dependent on the type of clutch material, transmission, flywheel size, etc. This information is complex. For that reason, we suggest that you give us a call. It will save you a lot of time and help us make sure your order is correct.
Choosing the right clutch disc friction material is important. The material largely determines clutch performance. For the 1994-2005 Ram diesel trucks (thru April 2005), we offer four different clutch material options:
When choosing a material, you want to pay attention to both intended use and engine torque rating, and match them up to your truck. Also, we suggest that mostly stock truck owners look carefully at kevlar, as it lasts 2-3 times longer than woven organic material.
The following are the clutches we offer by material to help you make the right selection.
NOTE: If you want to upgrade your NV4500HD transmission to use a 13" flywheel like the NV5600, we have kits that include an upgraded flywheel.
Woven organic is the material of choice when the goal is to maintain the smooth engagement. Organic clutch discs are made of metal fibers, woven into organic fiber. It offers increased torque capacity over stock. The increased capacity is due to the higher clamp load pressure plate. There’s only a slight increase in pedal effort (10-25%) over stock.
Recommended Use:
For 1994-1997 NV4500HD 5 Speed Transmission:
05-073 Organic, Engine Torque Capacity = 450 lb.ft. TQ/235HP
05-073.3 Organic, Engine Torque Capacity = 615 lb.ft. TQ/325HP
For 1998-2005 NV4500HD 5 Speed Transmission:
05-092 Organic, Engine Torque Capacity = 555 lb.ft. TQ/305HP
05-092.2 Organic, Engine Torque Capacity = 700 lb.ft. TQ/390HP
05-092.3 Organic, Engine Torque Capacity = 780 lb.ft. TQ/435HP
05-092.4 Organic, Engine Torque Capacity = 900 lb.ft. TQ/500HP
All of the above clutches, but with the flywheel included:
05-092iF Organic, Engine Torque Capacity = 555 lb.ft. TQ/305HP
05-092iF.3 Organic, Engine Torque Capacity = 780 lb.ft. TQ/435HP
13” Clutch Conversion for NV4500HD 5-Speed Transmission:
05-501 Organic, Engine Torque Capacity = 605 lb.ft. TQ/335HP
05-501.2 Organic, Engine Torque Capacity = 765 lb.ft. TQ/425HP
05-501.3 Organic, Engine Torque Capacity = 855 lb.ft. TQ/470HP
05-501.4 Organic, Engine Torque Capacity = 985 lb.ft. TQ/545HP
05-501CK Organic, Engine Torque Capacity = 605 lb.ft., TQ/335HP
05-501CK.2 Organic, Engine Torque Capacity = 765 lb.ft. TQ/425HP
05-501CK.3 Organic, Engine Torque Capacity = 855 lb.ft. TQ/475HP
05-501CK.4 Organic, Engine Torque Capacity = 985 lb.ft., TQ/545HP
For NV5600 6-Speed Transmission:
05-101 Organic, Engine Torque Capacity = 605 lb.ft. TQ/335HP
05-101.2 Organic, Engine Torque Capacity = 765 lb.ft. TQ/425HP
05-101.3 Organic, Engine Torque Capacity = 855 lb.ft. TQ/475HP
05-101.4 Organic, Engine Torque Capacity = 985 lb.ft. TQ/545HP
05-101iF Organic, Engine Torque Capacity = 605 lb.ft. TQ/335HP
05-101iF.2 Organic, Engine Torque Capacity = 765 lb.ft. TQ/ 425HP
05-101iF.3 Organic, Engine Torque Capacity = 855 lb.ft. TQ/475HP
05-101iF.4 Organic, Engine Torque Capacity = 985 lb.ft. TQ/545HP
*Not intended where a high heat high friction ceramic material is required.
Ceramic clutches are a mixture of materials. They’re comprised of: Copper, iron, tin bronze, silicon dioxide, and/or graphite. Ceramic discs have extreme heat resistance. When broken in, have a short slip period when engaged. The ceramic buttons work well for off-road trucks. Our ceramic button discs are engineered to stop chatter. They are best used under normal engagement.
05-073.3C Ceramic, Engine Torque Capacity = 625 lb.ft. TQ/330HP
05-073.4C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/450HP
05-073iF.3C Ceramic, Engine Torque Capacity = 625 lb.ft. TQ/330HP
05-073iF.4C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/450HP
05-092.3C Ceramic, Engine Torque Capacity = 870 lb.ft. TQ/480HP
05-092.4C Ceramic, Engine Torque Capacity = 905 lb.ft. TQ/500HP
05-092.5C Ceramic, Engine Torque Capacity = 1010 lb.ft. TQ/560HP
05-092.6C Ceramic, Engine Torque Capacity = 1160 lb.ft. TQ/650HP
05-092iF.3C Ceramic, Engine Torque Capacity = 870 lb.ft. TQ/480HP
05-092iF.4C Ceramic, Engine Torque Capacity = 905 lb.ft. TQ/500HP
05-092iF.5C Ceramic, Engine Torque Capacity = 1010 lb.ft. TQ/560HP
05-092iF.6C Ceramic, Engine Torque Capacity = 1160 lb.ft. TQ/650HP
05-501.3C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/470HP
05-501.4C Ceramic, Engine Torque Capacity = 965 lb.ft. TQ/535HP
05-501.5C Ceramic, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-501.6C Ceramic, Engine Torque Capacity = 1250 lb.ft. TQ/700HP
05-501CK.3C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/475HP
05-501CK.4C Ceramic, Engine Torque Capacity = 965 lb.ft. TQ/535HP
05-501CK.5C Ceramic, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-501CK.6C Ceramic, Engine Torque Capacity = 1250 lb.ft., TQ/600HP
05-101.3C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/475HP
05-101.4C Ceramic, Engine Torque Capacity = 965 lb.ft. TQ/535HP
05-101.5C Ceramic, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-101.6C Ceramic, Engine Torque Capacity = 1250 lb.ft., TQ/700HP
05-101iF.3C Ceramic, Engine Torque Capacity = 850 lb.ft. TQ/475HP
05-101iF.4C Ceramic, Engine Torque Capacity = 965 lb.ft. TQ/535HP
05-101iF.5C Ceramic, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-101iF.6C Ceramic, Engine Torque Capacity = 1250 lb.ft., TQ/600HP
Kevlar clutches are made with para-aramid fibers. These clutches offer longevity and smooth engagement. They have a low static-to-dynamic friction co-efficient. This makes them ideal when smooth engagement is needed. These clutches have a higher break-in period due to higher clamping pressures. However, their durability is stellar.
05-073.2K Kevlar, Engine Torque Capacity = 515 lb.ft. TQ/265HP
05-092.2K Kevlar, Engine Torque Capacity = 720 lb.ft. TQ/400HP
05-092.3K Kevlar, Engine Torque Capacity = 805 lb.ft. TQ/445HP
*For severe duty towing applications
05-092.2KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 700 lb.ft. TQ/390HP
05-092.3KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 780 lb.ft. TQ/435HP
05-092.5KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1010 lb.ft. TQ/560HP
05-092.6KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1160 lb.ft. TQ/650HP
05-501.2K Kevlar, Engine Torque Capacity = 790 lb.ft. TQ/440HP
05-501.3K Kevlar, Engine Torque Capacity = 880 lb.ft. TQ/490HP
05-501CK.2K Kevlar, Engine Torque Capacity = 790 lb.ft. TQ/440HP
05-501CK.3K Kevlar, Engine Torque Capacity = 880 lb.ft. TQ/490HP
05-501.2KC Dual Friction (Kevlar/Ceramic) = 805lb.ft. TQ/445HP
05-501.3KC Dual Friction (Kevlar/Ceramic) = 910 lb.ft. TQ/505HP
05-501.5KC Dual Friction (Kevlar/Ceramic) = 1080 lb.ft. TQ/600HP
05-501.6KC Dual Friction (Kevlar/Ceramic) = 1185 lb.ft. TQ/655HP
05-501CK.2KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 805 lb.ft. TQ/445HP
05-501CK.3KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 910 lb.ft. TQ/505HP
05-501CK.5KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-501CK.6KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1185 lb.ft. TQ/655HP
05-101.2K Kevlar, Engine Torque Capacity = 790 lb.ft. TQ/440HP
05-101.3K Kevlar, Engine Torque Capacity = 880 lb.ft. TQ/490HP
05-101.2KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 805 lb.ft. TQ/445HP
05-101.3KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 910 lb.ft. TQ/505HP
05-101.5KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-101.6KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1185 lb.ft. TQ/655HP
05-101iF.2KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 805 lb.ft.,TQ/445HP
05-101iF.3KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 910 lb.ft. TQ/505HP
05-101iF.5KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-101iF.6KC Dual Friction (Kevlar/Ceramic), Engine Torque Capacity = 1185 lb.ft. TQ/655HP
This is a newer material for clutches. FeramAlloy facings offer similar performance as ceramic. The difference it, they have much better static to dynamic ratio. The result of this is smoother engagement. These facings also have less chatter than ceramic versions. Phoenix Friction is one of the first to offer these in heavy-duty applications.
05-501.5FA FeramAlloy, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-501.6FA FeramAlloy, Engine Torque Capacity = 1250 lb.ft. TQ/700HP
05-101.5FA FeramAlloy, Engine Torque Capacity = 1080 lb.ft. TQ/600HP
05-101.6FA FeramAlloy, Engine Torque Capacity = 1250 lb.ft.,TQ/700HP
Not sure about power levels when choosing your new clutch? We have an easy guide here that will help. Contact us with any technical or application questions. Buy your new clutch kit now to retain or improve the driving characteristics of your Ram.
