|May 2005 - 2012

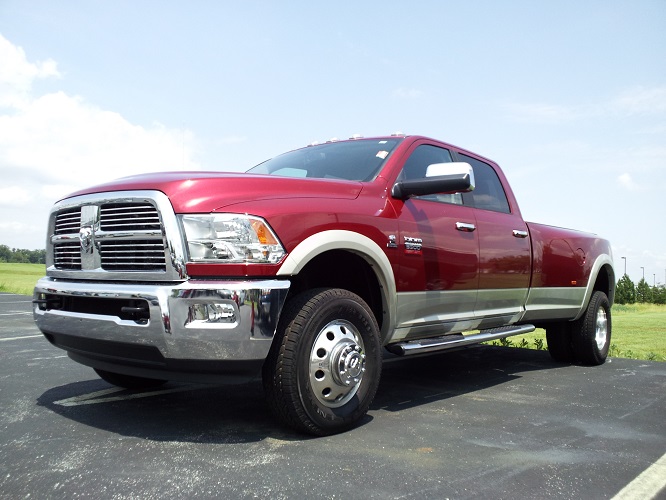

Dodge Ram 2500 3500 with Cummins Turbo Diesel and a Dual Mass Flywheel
- Clutch Kit Options -
|From May 2005 to 2012, Dodge redesigned the Ram Series Cummins Diesel clutch to utilize a Dual Mass Flywheel. This was was done to minimize gear rattle rollover noise when, fitted with the Mercedes G56 Transmission. This change in clutch design was to make the truck quieter as typical in a sedan. The problem with the Dual Mass Flywheel in this pickup is that it is limited by the OE engine torque capacity (ETC) and would tend to wear out in a very short period of time - often less than 40K miles. In a direct response to the failure rate of the Dual Mass Flywheel, Valeo, the original OE manufacturer, engineered a Solid Flywheel Conversion Kit. The Solid Flywheel Conversion kit quickly became very popular with truck owners and also allowed for flexibility in engineering clutch options with increased torque. Beginning in 2007, Dodge made the 6.7L (408") Cummins Turbo Diesel as available engine option.
Quick Note: The only downside to converting to a Solid Flywheel is that the engine vibration that diesels tend to produce no longer gets absorbed by the flywheel. The engine vibration is transferred to the transmission and causes "gear rattle". This is only noticeable when the truck is at a stop, in neutral, with the clutch pedal out. As soon as the clutch pedal is applied, the vibration goes away. This is a normal occurrence when doing a solid flywheel conversion. It does not increase gear wear and can be safely ignored. It can be minimized by using additives. For more information, go to this page.
|Types of Friction Material Used
Woven Organic Disc Clutch Kits
Recommended Use: As a Daily Driver plus Hauling/Towing on asphalt.
Not intended as for racing applications where a high heat high friction ceramic material is required.
Woven organic is the friction material of choice when the goal is to maintain the smooth engagement of the original clutch. Woven Organic Clutch Kits are recommended if your truck is a daily driver and/or you are using your truck to tow on paved surfaces. The increase in torque is accomplished by using a higher clamp load pressure plate. The step up in clamp load only can increase pedal pressure in a range of 10-25%. High clamp kits are designated by a suffix number (.2 / .3 / .4 / .5) without a letter included.
Ceramic Disc Clutch Kits
Recommended Use: Farming, Forestry/Logging, Construction Sites, Full-Time Snow Plows, and Light Racing.
Ceramic buttons are a high heat high-torque friction material which tends to, once broken in, have a short slip period when engaged. Ceramic disc clutch kits work well for pickups that are intended for off-road use where the dirt allows for tire slippage minimizing the quick engagement nature of the disc. When used on asphalt, a Ceramic button disc will tend to chatter upon engagement in first or reverse when getting started from a dead stop, and is most noticeable when under load or towing. This is caused by the driver feathering the clutch to try to control engagement. Due to the short slip period of this material, this feathering creates a constantly fluctuating engagement cycle with the flywheel and pressure plate. Our Ceramic button discs are engineered to minimize chatter, and are best used when the engagement is done normally. Several high clamp load pressure plate options providing a step up in torque are available for these model years. This step up in clamp load only applies a small 10-15% increase in peddle pressure from the previous stage. High clamp kits are designated by a suffix number (i.e. .4C, .5C) with the "C" indicating the disc is Ceramic.

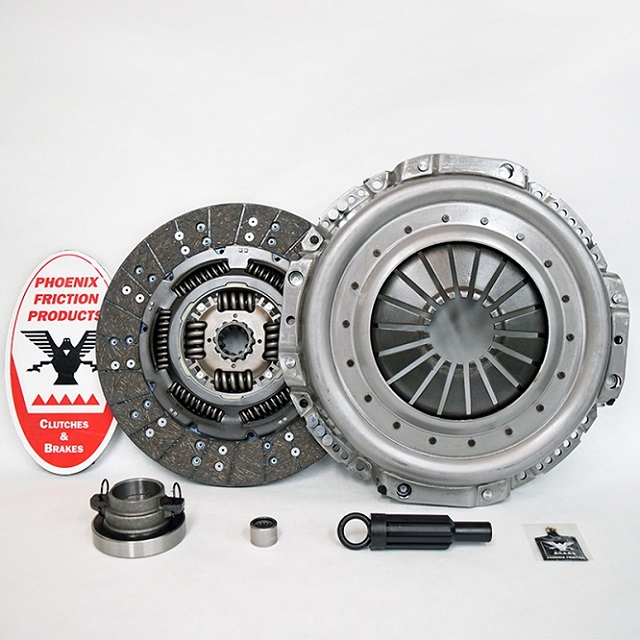

I am converting for the first time from the original
dual mass flywheel
(the following kits include a new solid flywheel and a pre-filled hydraulic system)
Woven Organic Kits
05-124CK Organic, Engine Torque Capacity = 675 lb.ft., 390HP (includes flywheel)
05-124CK.2 Organic, Engine Torque Capacity = 765 lb.ft., 440HP (includes flywheel)
05-124CK.3 Organic, Engine Torque Capacity = 855 lb.ft., 490HP (includes flywheel)
05-124CK.4 Organic, Engine Torque Capacity = 985 lb.ft., 565HP (includes flywheel)
Ceramic Disc Kits
05-124CK.3C Ceramic, Engine Torque Capacity = 850 lb.ft., 475HP (includes flywheel)
05-124CK.4C Ceramic, Engine Torque Capacity = 965 lb.ft., 555HP (includes flywheel)
05-124CK.5C Ceramic, Engine Torque Capacity = 1080 lb.ft., 620HP (includes flywheel)
05-124CK.6C Ceramic, Engine Torque Capacity = 1250 lb.ft., 715HP (includes flywheel)
I have already converted to a Solid Flywheel
and just need a new clutch kit...
05-524.2 Organic, Engine Torque Capacity = 765 lb.ft., 440HP
05-524.3 Organic, Engine Torque Capacity = 855 lb.ft., 490HP
05-524.4 Organic, Engine Torque Capacity = 985 lb.ft., 565HP
Ceramic Disc Kits
05-524.3C Ceramic, Engine Torque Capacity = 850 lb.ft., 490HP
05-524.4C Ceramic, Engine Torque Capacity = 965 lb.ft., 555HP
05-524.5C Ceramic, Engine Torque Capacity = 1080 lb.ft., 620HP
05-524.6C Ceramic, Engine Torque Capacity = 1250 lb.ft., 715HP
